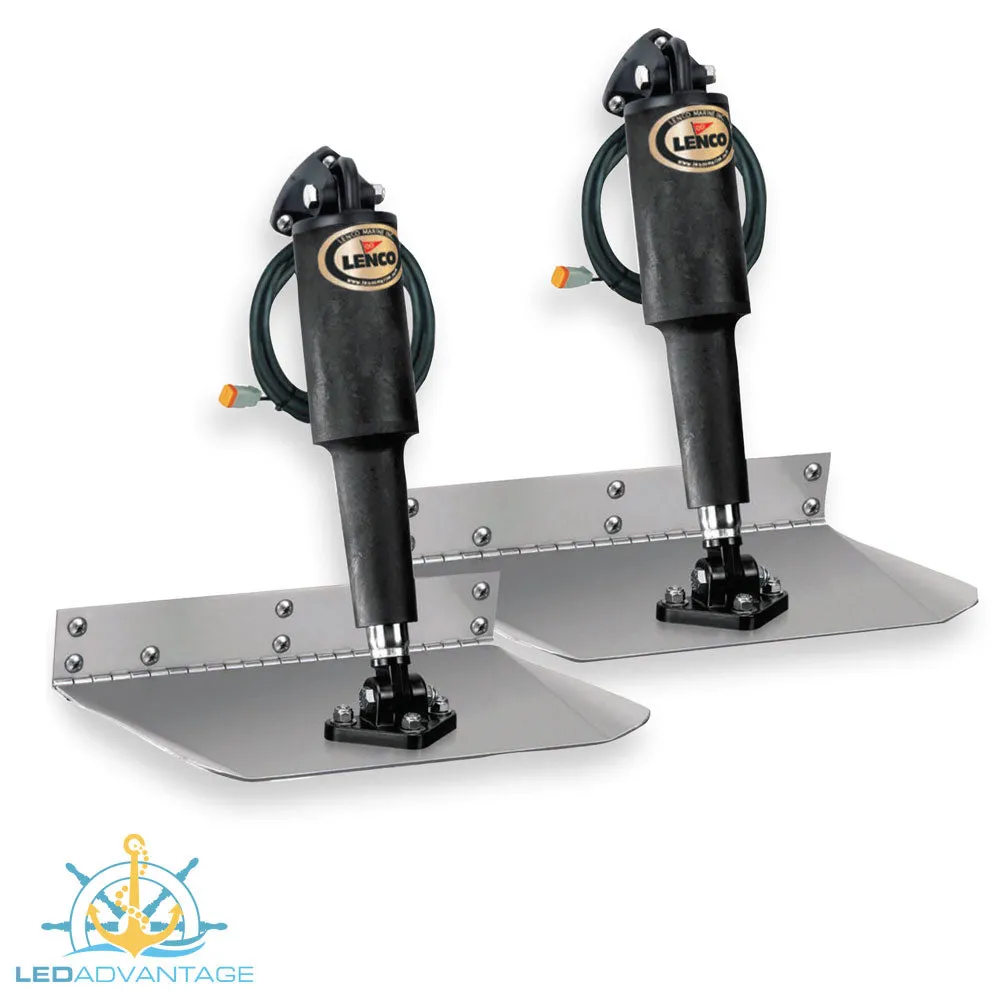

The series that started the electric revolution! Our original Trim Tab design and still the most popular series we build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers. Boat lengths 14' (4.3 m) to 69' (21 m).
Blades are constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel with a 5/8" (1.6 cm) flared trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.
Features:
Softer, Smoother, Safer ride.
Lenco Electric Actuators react instantaneously unlike hydraulic tabs.
Fuel savings.
Can be installed on any boat with any engine.
Easy retrofit to boats with hydraulic tabs.
Fast and easy installation.
122 carling double rocker switch.
12/24 volt.
Plug and play Deutsch connectors.
36" power pigtail and mounting hardware.
Installation hardware included.
Does not require control box.
Lenco Trim Tab Kit Manual
Lenco Full Catalogue
Width: 9" (228mm), 12" (304.9mm)

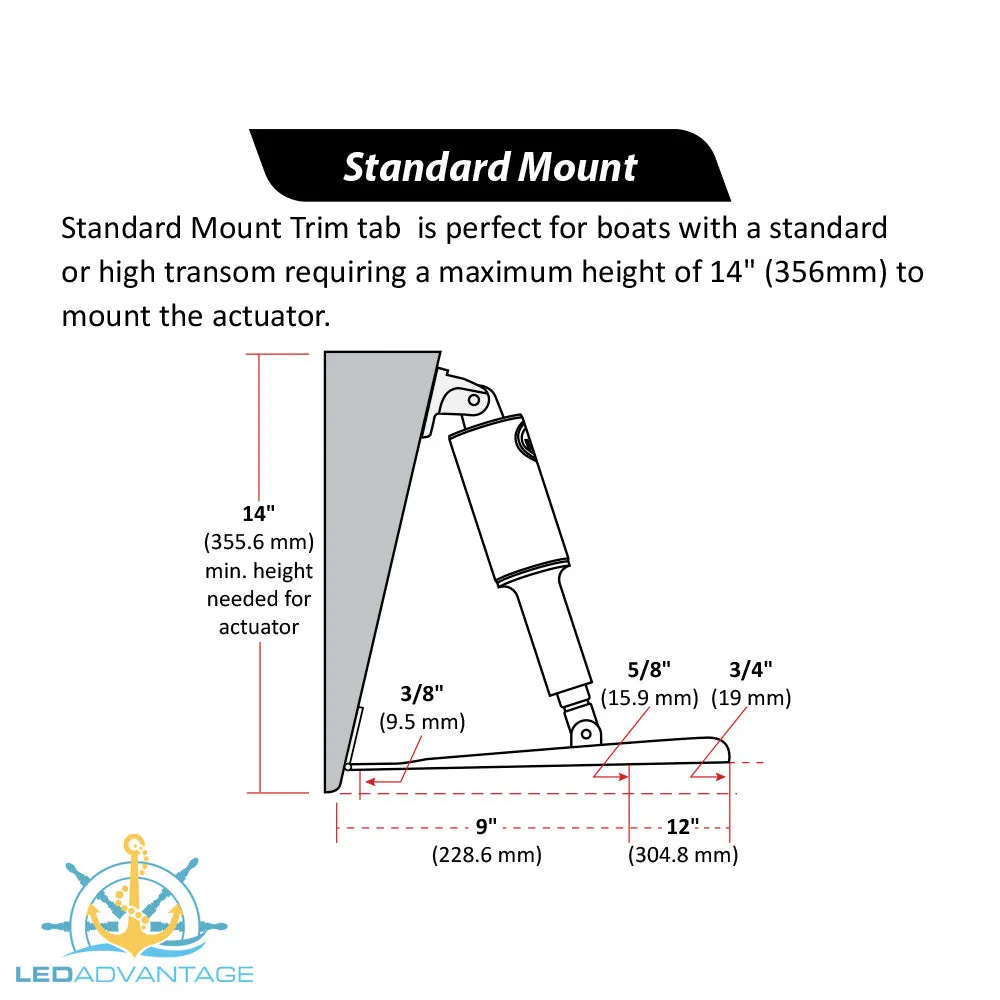

Min. Transom Height: 356mm
Approx. Boat Length: 4.3Mtr - 5.5Mtr
Finish: Electro Polished

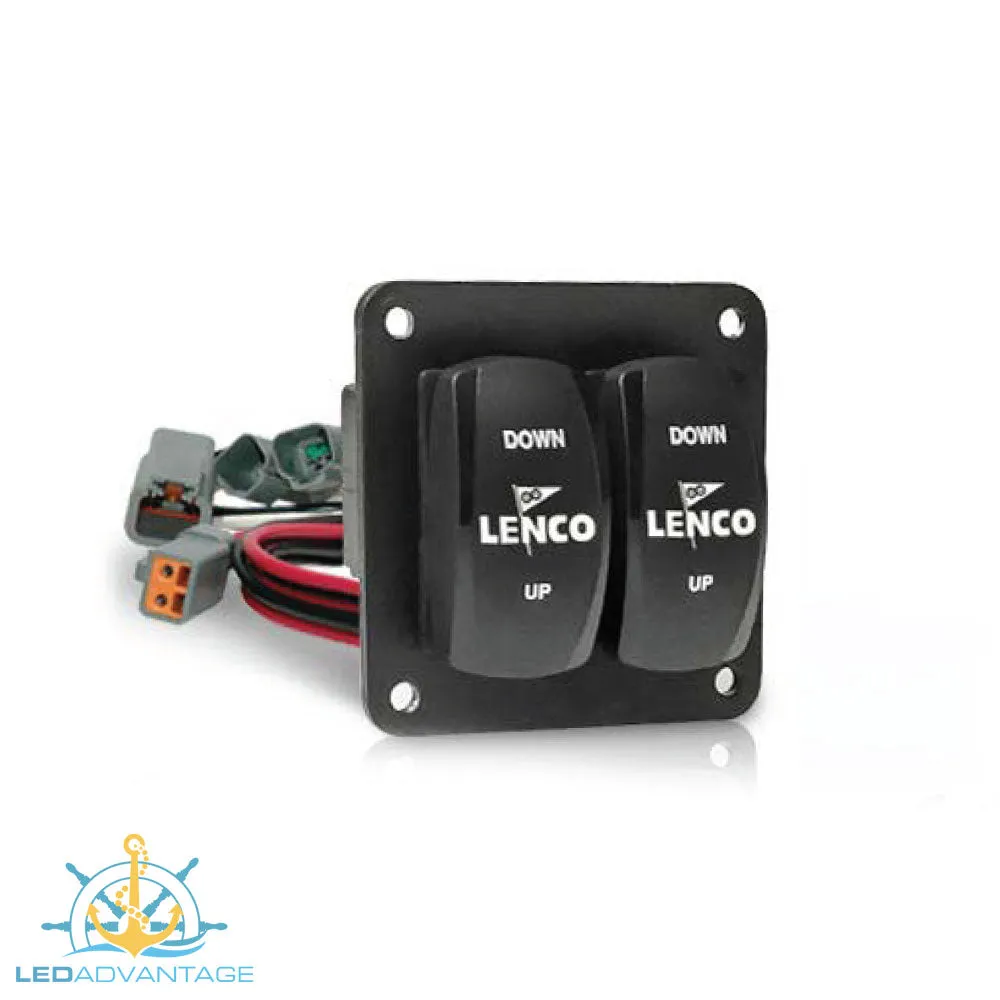

Switch Kit: Double Rocker
Volts: 12V
Hinge Height: 51mm

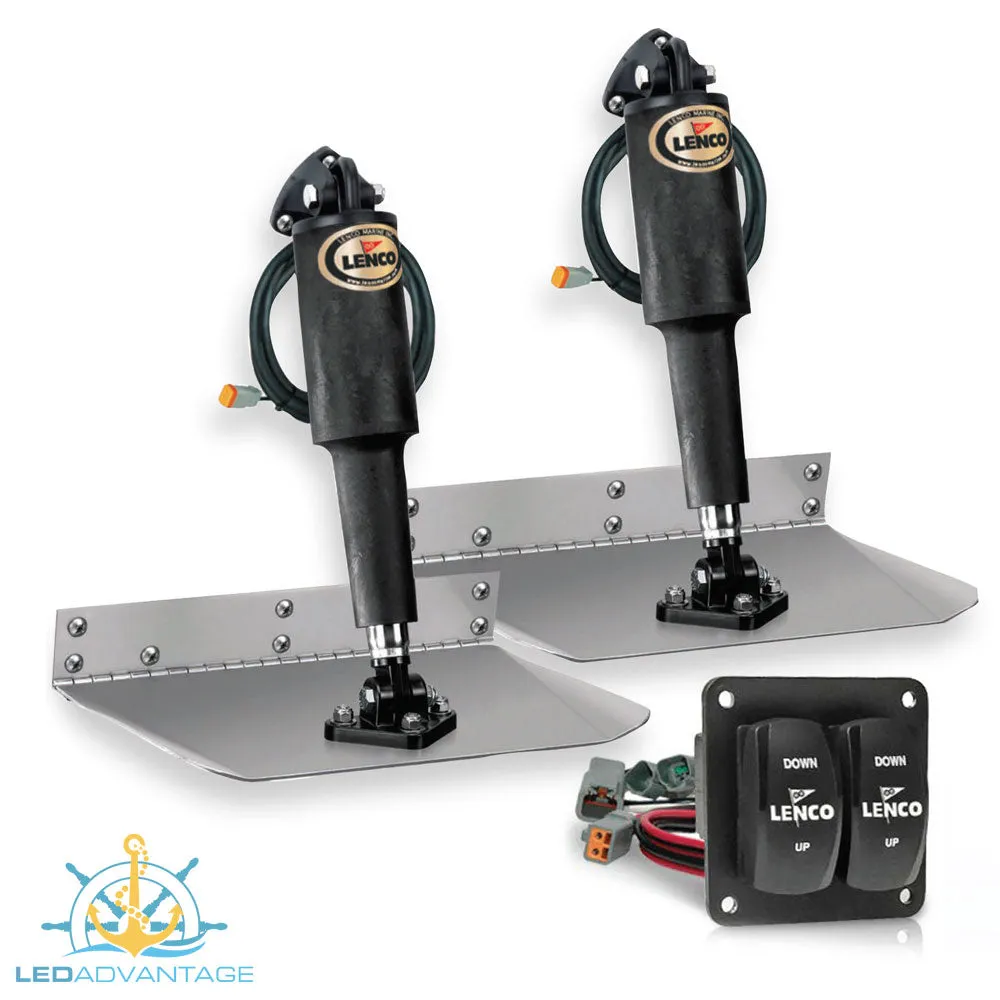

Standard Mount Trim Tab Kits:
2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8" flared trailing edge and 1/8" diameter hinge pin.
2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
2 x actuator extension wiring harness (6m) with Deutsch connectors.
1 x set of stainless steel fasteners.
2 x upper mounting bracket with gland seal.
2 x lower mounting bracket.
Lenco owner’s installation manual.
5 Year Warranty (Recreational Use).
