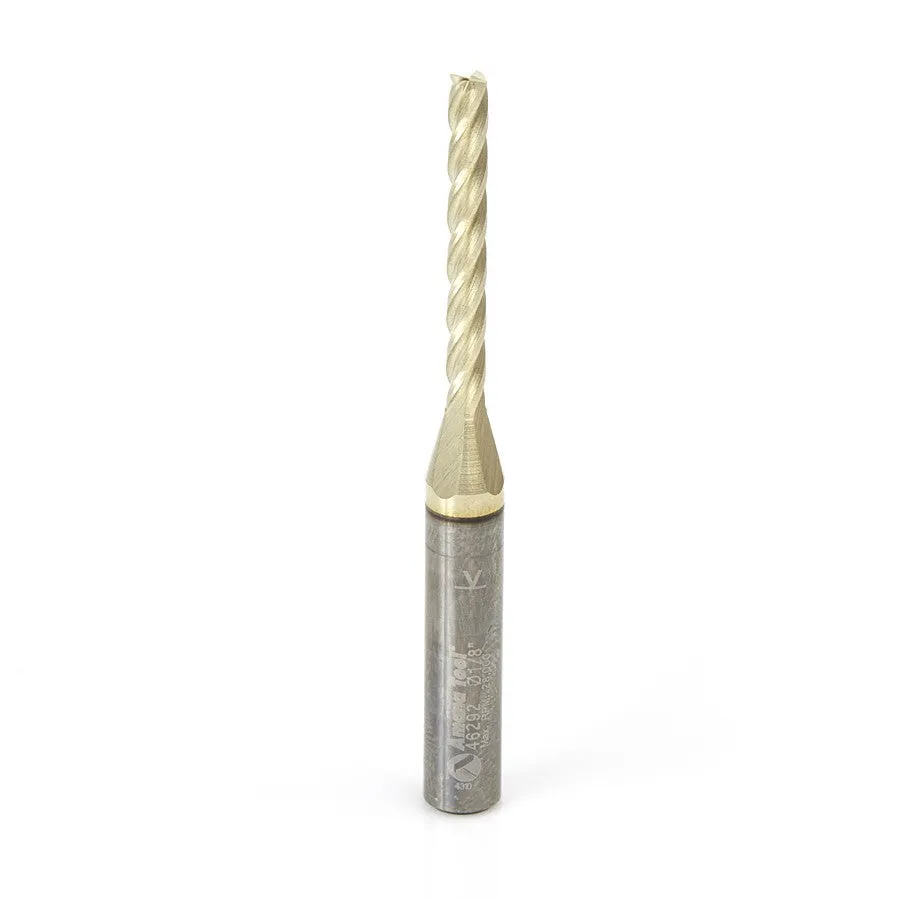

Amana 3D Carving Flat Bottom 1/8" Dia, 0.10* ZrN Coated. Perfect for 2D and 3D profiling and carving in various materials such as wood, plastic, and aluminum. The gold ZrN coating acts as a lubricant and greatly extends the tools life.
[TABS]
Features
Specially designed for 2D and 3D CNC profiling and carving in plastic, aluminum & wood with CNC machines. The high-shear flat bottom tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction and heat buildup. Some of Amana Tool carving tools, as you can appreciate have a very small diameter therefore any material chip-loads need to reflect that small size. It can however withstand RPM’s up to 60,000 RPMs. A directed air-blast to keep chips away along with cooling the tool and work piece are always welcome.
Specs
Diameter: 1/8
Angle: 0.10°
Cutting Height: 1-3/32
Shank: 1/4
Overall Length: 2-1/2
Type: Flat Bottom, ZrN
Flutes: 4
[/TABS]
